Bearing Groove Diameter:
115mm (4.527")OR
120mm (4.7")OR
125mm (4.9")
Bearing Groove Diameter:
128mm (5")OR
146mm (5.75")
Serving the Agricultural Replacement Parts Business Since 1972
- PTO Driveline Assemblies for various -
New Holland   Hesston   Massey Ferguson
John Deere   Krone   Case IH   Challenger
AGCO   Vermeer   Round Balers
NOTE: May need to substitute the following:
RAP615021-WC =
  RAP6150-WE  &  RAP6221121-AC

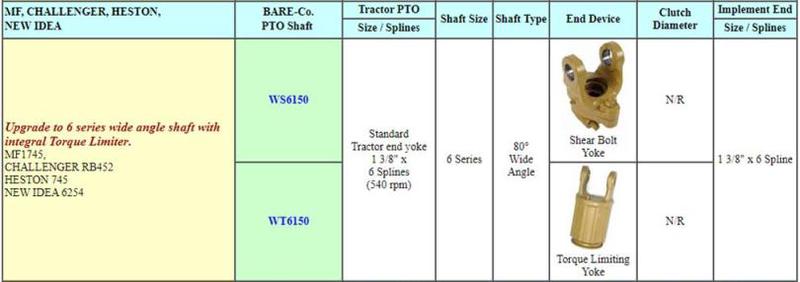

Massey, AGCO, Challenger, Hesston, New Idea

Massey Ferguson 1745
Challenger RB452
Hesston 745
New Idea 6254
AGCO 5145
1 3/8" x 6 Spline
Tractor Yoke
(Standard
540 RPM)
6 Series
Shaft Size
80 Degree
Wide Angle
1 3/8" x 6 Spline Implement End
4" Torque Limiting Yoke
This item replaces: 700722904, R6150-WT, 700722889, 700721471, 700731897, 700731897, 700722792, 700722895, R6150-WE, R62-SK

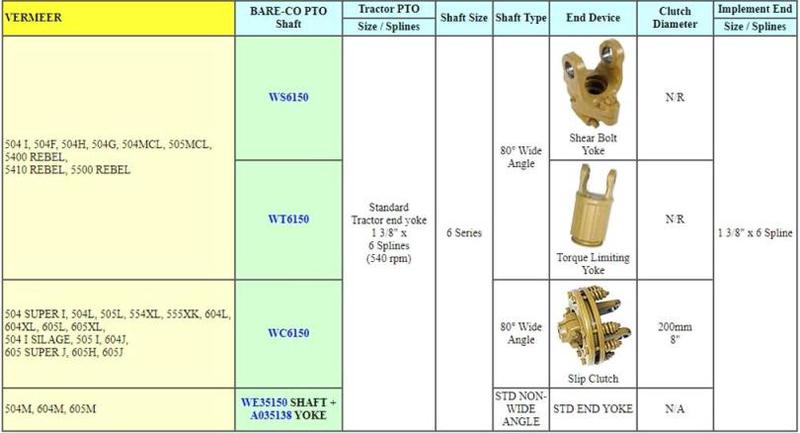

Vermeer
1 3/8" x 6 Spline
Tractor Yoke
(Standard
540 RPM)
6 Series
Shaft Size
80 Degree
Wide Angle
1 3/8" x 6 Spline Implement End
4" Torque Limiting Yoke
504 I, 504F, 504H, 504G, 504MCL, 505MCL, 5400 REBEL, 5410 REBEL, 5500 REBEL
1 3/8" x 6 Spline
Tractor Yoke
(Standard
540 RPM)
6 Series
Shaft Size
80 Degree
Wide Angle
1 3/8" x 6 Spline Implement End
200mm
8" Diameter
Slip Clutch
504 SUPER I, 504L, 505L, 554XL, 555XK, 604L, 604XL, 605L, 605XL,
504 I SILAGE, 505 I, 604J, 605 SUPER J, 605H, 605J
KR100, KR125, KR130, KR155, KR160
1250, 1500, 1550, 1800, 1500V, 1250MC

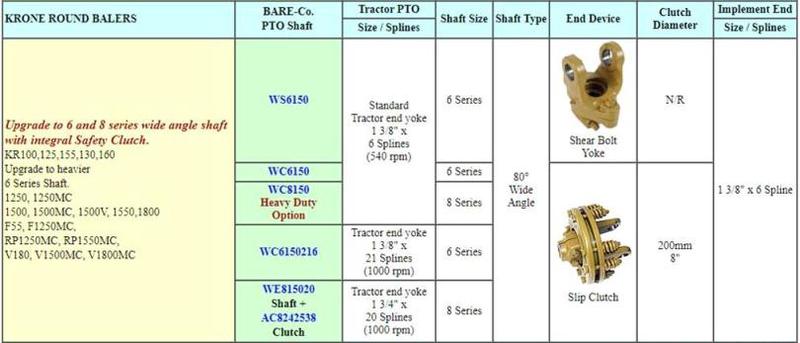

Krone
1 3/8" x 6 Spline
Tractor Yoke
(Standard
540 RPM)
6 Series
Shaft Size
80 Degree
Wide Angle
1 3/8" x 6 Spline Implement End
200mm
8" Diameter
Slip Clutch
435, 446, 447, 448, 456, 457, 458, 466, 467, 468, 469, 535, 546, 547, 556, 557, 558, 566, 567, 568, 569
John Deere
1 3/8" x 6 Spline
Tractor Yoke
(Standard
540 RPM)
8 Series
Shaft Size
80 Degree
Wide Angle
1 3/8" x 6 Spline Implement End
200mm
8" Diameter
Slip Clutch
1 3/8" x 21 Spline
Tractor Yoke
(Standard
540 RPM)
6 Series
Shaft Size
80 Degree
Wide Angle
1 3/8" x 6 Spline Implement End
200mm
8" Diameter
Slip Clutch
1 3/4" x 20 Spline
Tractor Yoke
(Standard
540 RPM)
8 Series
Shaft Size
80 Degree
Wide Angle
1 3/8" x 6 Spline Implement End
200mm
8" Diameter
Slip Clutch
These Assemblies are normally an upgrade from many OEM 4 Series Drivelines to a 6 or 8 Series wide angle shaft assembly.
These Assemblies are normally an upgrade from many OEM 4 Series Drivelines to a 6 or 8 Series wide angle shaft assembly.

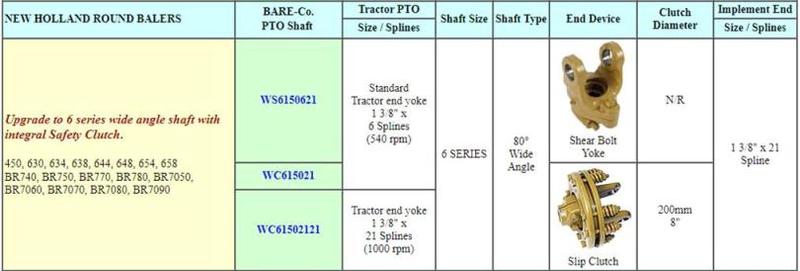

New Holland

450, 630, 634, 638, 644, 648, 654, 658, BR740, BR750, BR770, BR780, BR7050, BR7060, BR7070, BR7080, BR7090
1 3/8" x 6 Spline
Tractor Yoke
Standard
540 RPM
6 Series
Shaft Size
80 Degree
Wide Angle
1 3/8" x 21 Spline Implement End
200mm
8" Diameter
Slip Clutch
1 3/8" x 21 Spline
Tractor Yoke
Standard
1000 RPM
6 Series
Shaft Size
80 Degree
Wide Angle
1 3/8" x 21 Spline Implement End
200mm
8" Diameter
Slip Clutch

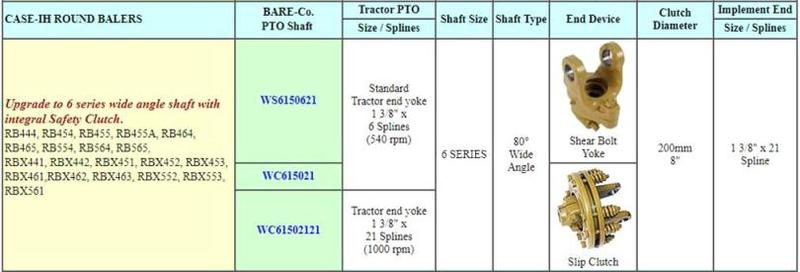

CASE IH

RB444, RB454, RB455, RB455A, RB464, RB465, RB554, RB465, RB565, RBX442, RBX451, RBX452, RBX453, RBX461, RBX462, RBX463, RBX552, RBX553, RBX561
1 3/8" x 6 Spline
Tractor Yoke
Standard
540 RPM
6 Series
Shaft Size
80 Degree
Wide Angle
1 3/8" x 21 Spline Implement End
200mm
8" Diameter
Slip Clutch
1 3/8" x 21 Spline
Tractor Yoke
Standard
1000 RPM
6 Series
Shaft Size
80 Degree
Wide Angle
1 3/8" x 21 Spline Implement End
200mm
8" Diameter
Slip Clutch
1 3/8" x 6 Spline
Tractor Yoke
(Standard
540 RPM)
6 Series
Shaft Size
80 Degree
Wide Angle
1 3/8" x 6 Spline Implement End
200mm
8" Diameter
Slip Clutch
1 3/8" x 6 Spline
Tractor Yoke
(Standard
540 RPM)
8 Series
Shaft Size
80 Degree
Wide Angle
1 3/8" x 6 Spline Implement End
200mm
8" Diameter
Slip Clutch
1 3/8" x 21 Spline
Tractor Yoke
(Standard
540 RPM)
6 Series
Shaft Size
80 Degree
Wide Angle
1 3/8" x 6 Spline Implement End
200mm
8" Diameter
Slip Clutch
1 3/4" x 20 Spline
Tractor Yoke
(Standard
540 RPM)
8 Series
Shaft Size
80 Degree
Wide Angle
1 3/8" x 6 Spline Implement End
200mm
8" Diameter
Slip Clutch
These Assemblies are normally an upgrade from many OEM 4 Series Drivelines to a 6 or 8 Series wide angle shaft assembly.
