Rick's Ag Parts, LLC
Serving the Agricultural Replacement Parts Business Since 1972

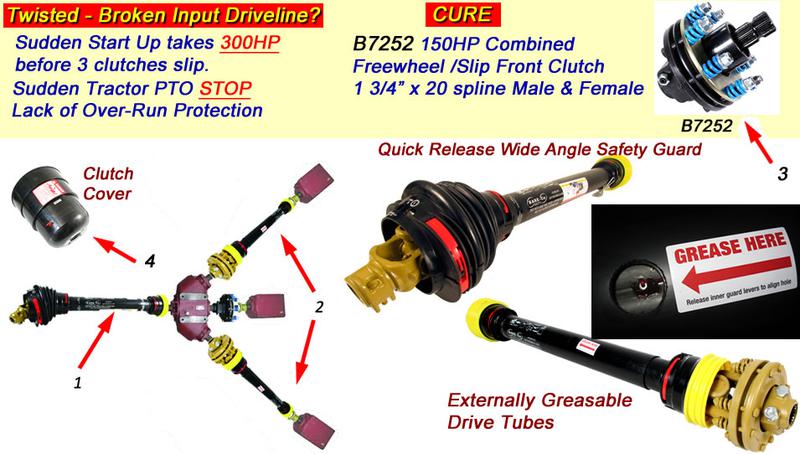

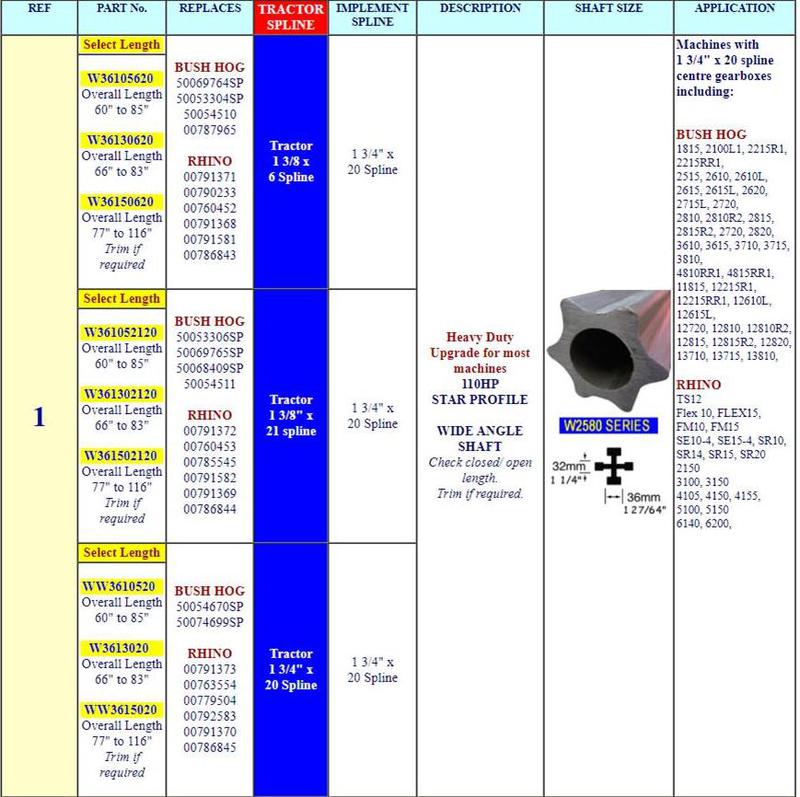

REFERENCE 1

HEAVY DUTY ASSEMBLIES FOR MAIN INPUT CV DRIVELINE
W2580 SERIES SHAFT WITH SIX LOBE STAR PROFILE HOLLOW BAR DRIVE TUBES
Assembly with
Tractor Yoke
1 3/8" x 6 spline

Implement Yoke
1 3/4" x 20 Spline
W36105620
Closed/Open Length

55" to 72"
----------------------
W36150620
Closed/Open Length

75" to 110"
REPLACES

BUSH HOG
50069764SP 50053304SP
50054510
00787965

RHINO
00791371
00790233
00760452
00791368
00791581
00786843

​BUSH HOG
1815, 2100L1, 2215R1, 2215RR1,
2515, 2610, 2610L, 2615, 2615L, 2620,
2715L, 2720,
2810, 2810R2, 2815, 2815R2, 2720, 2820,
3610, 3615, 3710, 3715, 3810,
4810RR1, 4815RR1,
11815, 12215R1, 12215RR1, 12610L, 12615L,
12720, 12810, 12810R2, 12815, 12815R2, 12820,
13710, 13715, 13810
RHINO
TS12
Flex 10, FLEX15, FM10, FM15
SE10-4, SE15-4, SR10, SR14, SR15, SR20
2150
3100, 3150
4105, 4150, 4155,
5100, 5150
6140, 6200
-------------------------------------------------------------------------------------------------------------------------------
Assembly with
Tractor Yoke
1 3/8" x 21 spline

Implement Yoke
1 3/4" x 20 Spline
W361052120
Closed/Open Length

55" to 72"
----------------------
W361502120
Closed/Open Length

75" to 110"
BUSH HOG
50069765SP 50053306SP
50054511
50068409SP

RHINO
00791372
00760453
00785545
00791369
00791582
00786844

-------------------------------------------------------------------------------------------------------------------------------
Assembly with
Tractor Yoke
1 3/4" x 20 spline

Implement Yoke
1 3/4" x 20 Spline
WW3610520
Closed/Open Length

55" to 72"
----------------------
WW3615020
Closed/Open Length

75" to 110"
BUSH HOG
50054670SP 50074699SP
50054511
50068409SP

RHINO
00791373
00763544
00779504
00792583
00791370
00786845

APPLICATION
PART #
DESCRIPTION

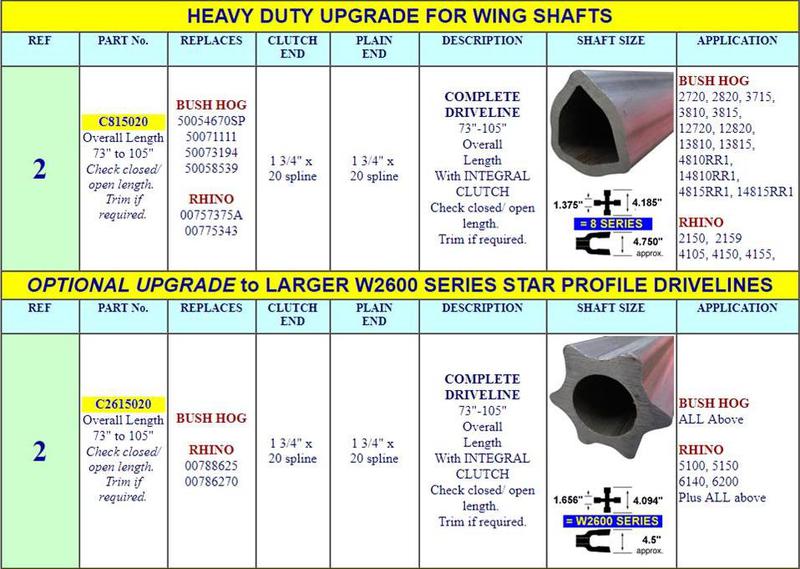

REFERENCE 2
OPTIONAL UPGRADE ASSEMBLIES FOR WING DRIVELINE
W2600 SERIES SHAFT WITH SIX LOBE STAR PROFILE HOLLOW BAR DRIVE TUBES
Assembly with
Clutch End
1 3/4" x 20 spline

Plain End
1 3/4" x 20 Spline

C2615020
Closed/Open Length

73" to 105"

with Integral
Slip Clutch
BUSH HOG


RHINO
00788625
00786270
BUSH HOG
​All Above

RHINO
5100, 5150
6140, 6200
also, All Above
COMPLETE DRIVELINE ASSEMBLIES FOR MACHINES EQUIPPED WITH WIDE ANGLE (CV) INPUT DRIVELINE
All Driveline Assemblies include externaly greaseable telescopic drive tubes and Bare-Co patent instant access safety guards.
