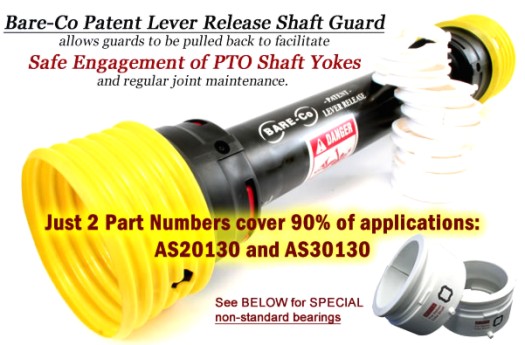

PTO DRIVELINE SHIELDS/GUARDS
PAGE UNDER CONSTRUCTION  -  01/15/19
Serving the Agricultural Replacement Parts Business Since 1972
Part Number

AS20090
AS20130
AS20180

NOTE: Includes ALL Standard Bearings

Closed Length

40" *
59" *
79" *

* Guards easily
cut to length

Open Length​

63" *
98" *
134" *

* Guards easily
cut to length

Small to Medium Diameter PTO Shafts

Yoke bearing groove dia 1 5/16" to 2 1/8"
BARE-Co shafts up to and including series 4
BYPY & COMER shafts up to and including series 4 with triangle profile drive tube (see below**)
U.S. 6N - 12N Series
WALTERSCHEID shafts up to and including series W2100

**Add
AS274
SPECIAL BEARING SET
for Latest BYPY Shafts with Square Drive Tube. Series S2, S4, S5.

Yoke Bearing groove diameters
70mm (2.75") + 73mm (2.875")
Part Number

AS30090
AS30130
AS30180

NOTE: Includes ALL Standard Bearings

Closed Length

40" *
59" *
79" *

* Guards easily
cut to length

Open Length

63" *
98" *
134" *

* Guards easily
cut to length

Larger Diamter PTO Shafts

Yoke bearing groove dia 2" to 3 1/8"
BARE-Co shafts series 6 to 2600
BYPY & COMER shafts series 5 to 10 series with triangle profile drive tube (see below**)
U.S. 14N - 35N - 44N - 55N Series
WALTERSCHEID shafts series W2300S to W2600 (see below for W2700, P600, P700)

**Add
AS390 SPECIAL BEARING SET

for Latest BYPY Shafts with Square Drive Tube. Series S6, S7, S8, H8

Yoke Bearing groove diameters
86mm (3.39") + 89mm (3.5")
AS382
SPECIAL BEARING SET

for the VERY LARGE (50mm 1.97" dia Cross Bearing) Walterscheid W2700 series EARLY type shafts

Confirm shaft groove diameter with this picture

AS395
SPECIAL BEARING SET

for the VERY LARGE (50mm 1.97" dia Cross Bearing) Walterscheid P600 & P700 series LATE type shafts

Confirm shaft groove diameter with this picture
